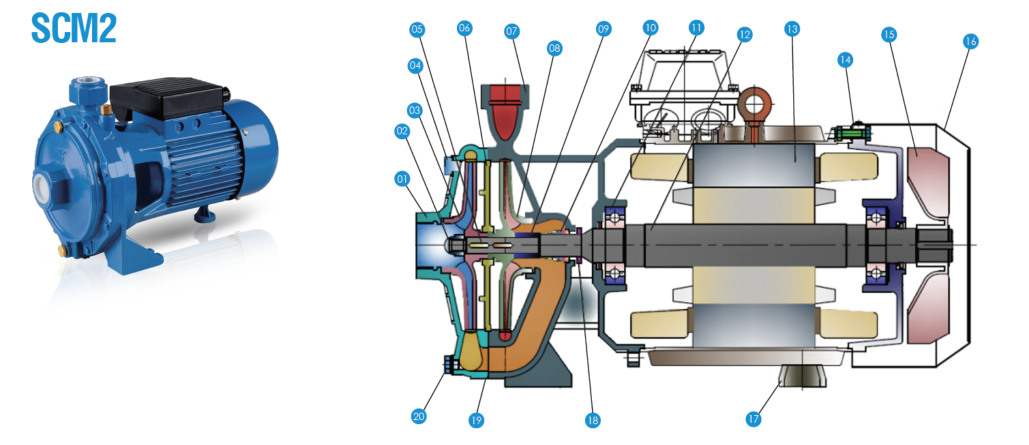

Pump Description
The close-coupled twin-impeller centrifugal electric pump is designed for the pumping of clean water or any
clear liquids which do not contain solids and are not corrosive, abrasive or explosive when in contact with the
pump motor unit and its working parts

Scope of Supply
Pump supplied with bare shaft pump with motor, in horizontal design, painted to plant standard, sealed by a
mechanical sea, without coupling. (Electric Pump)
Pump to be supplied with:
- Close-coupled centrifugal pump (for horizontal installation)

Guarantee, Testing and Quality Control
Every pump is tested for correct functioning. The operating data are guaranteed without acceptance test in
accordance with ISO 9906 Annex A, DIN 1944/III or comparable international testing standards.

Application
Water supply
Fire-fighting systems
Sprinkling
Irrigation
Drainage
Fire-fighting water
Domestic
Civil and industrial sectors

Power Range: 1 HP – 3 HP
Capacity Range: 100L/M to 600 L/M
Head Range: 32m to 55m
