![End Suction Bare Shaft Pump](/_next/image?url=%2F_next%2Fstatic%2Fmedia%2Findustrial2.e58e5208.png&w=640&q=75)
Description
Application
End suction pump series design could match the different motor types for multiple applications.
Water supply and transfer in municipal and industrial applications.
Water treatment plants.
Air-conditioning systems.
Circulation in cooling and heating systems.
Irrigation and sprinkler pumping stations.
Features
Single-Stage bare shaft
Directly fixed on the base-plate
Energy-saving
Back-pull-out design
Operation conditions

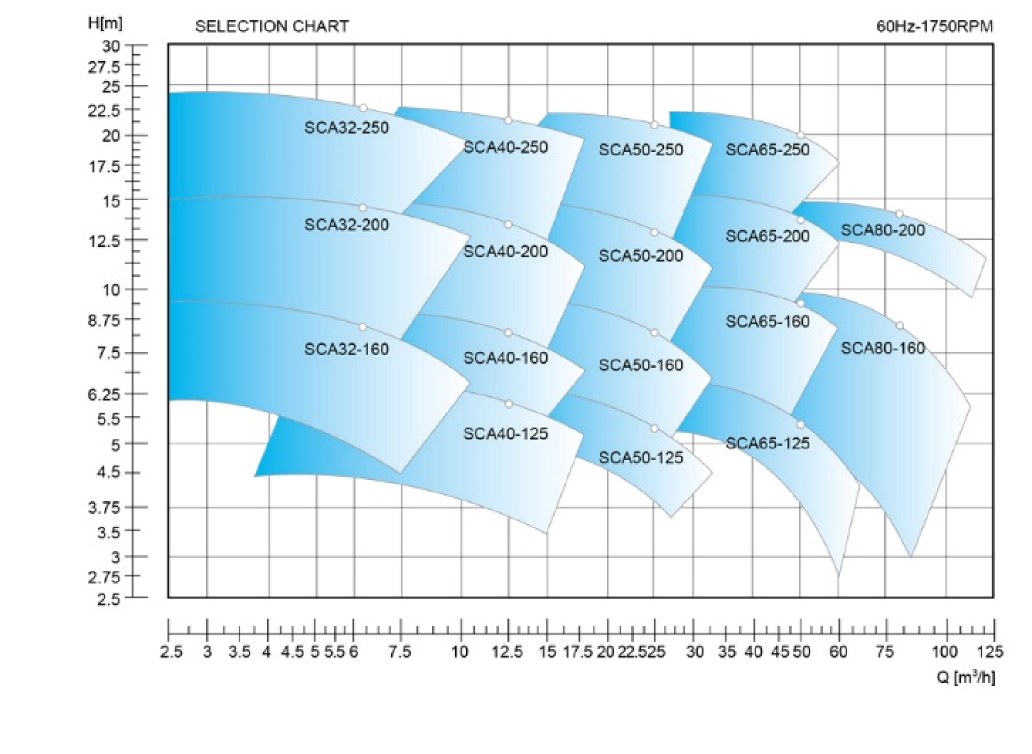

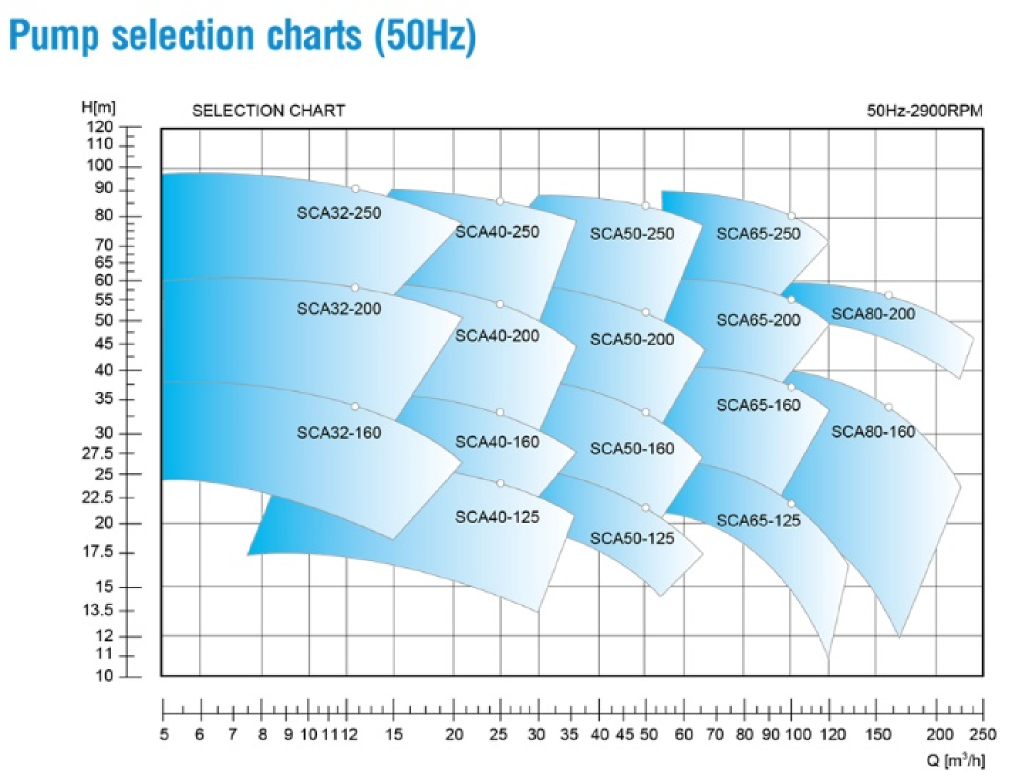

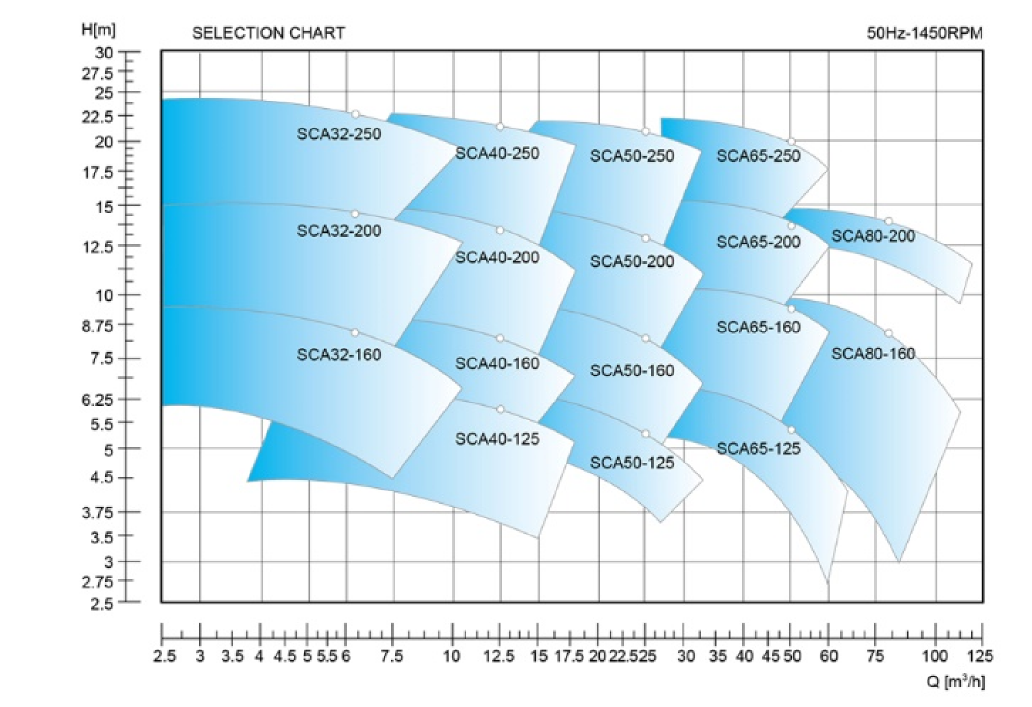

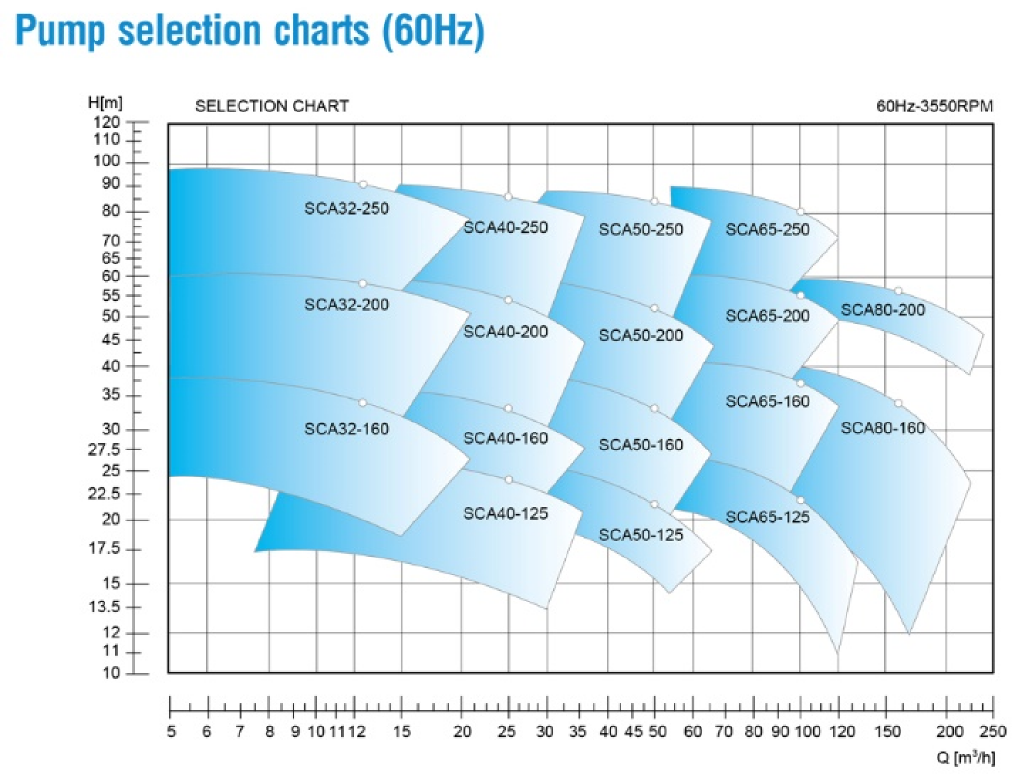

Operating speed: 1450rpm or 2900rpm, 1750rpm or 3500rpm
Max. Viscosity: 1Cp, Normal temperature (24℃)
Working Temperature Range: -15℃ ~ 105℃
Max. Allowable Suction Pressure (MASP): PN0.6MPa
Max. Allowable Working Pressure (MAWP): PN1.0MPa or PN1.6MPa

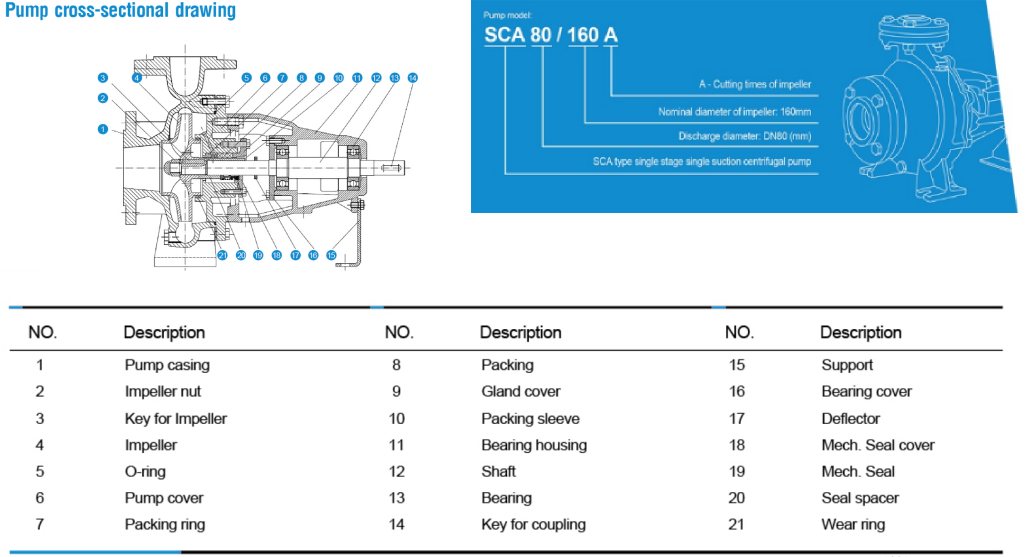

![End Suction Bare Shaft Pump](/_next/image?url=%2F_next%2Fstatic%2Fmedia%2Fstainless_table1.58baf101.png&w=3840&q=75)
![End Suction Bare Shaft Pump](/_next/image?url=%2F_next%2Fstatic%2Fmedia%2Fstainless_table2.59d86fa5.png&w=3840&q=75)
![End Suction Bare Shaft Pump](/_next/image?url=%2F_next%2Fstatic%2Fmedia%2Fstainless_table3.8ba8bf41.png&w=3840&q=75)
![End Suction Bare Shaft Pump](/_next/image?url=%2F_next%2Fstatic%2Fmedia%2Fstainless_table4.4f18a2f4.png&w=3840&q=75)
![End Suction Bare Shaft Pump](/_next/image?url=%2F_next%2Fstatic%2Fmedia%2Fstainless_table5.8bb2f99a.png&w=3840&q=75)
